Don't blindly replace inductors when you hear high-frequency noise from the power supply!

High-frequency whistling noise from a power board is a common headache for many electronic engineers. The immediate reaction might be to replace the inductor, but the root cause often goes far beyond just the inductor itself. Inductor whistling is not an issue of a single component; it is typically related to multiple factors including switching frequency, dynamic load fluctuations, core material selection, coil winding structure, vacuum varnish process, and the tightness of mounting adhesive points.

The essence is the magnetostrictive effect: alternating high-frequency voltage and current causes the microscopic size of the magnetic core to repeatedly expand and contract, thereby driving the coil, PCB, and surrounding components to resonate and produce sound;sometimes it is the vibration of the inductor itself, and sometimes the PWM switching frequency falls within the frequency range sensitive to the human ear, amplifying the noise.

Therefore, to completely eliminate the power supply hum, one cannot simply replace the inductor blindly. Instead, it is necessary to first identify the triggering conditions for the hum: whether it occurs under light load / full load / overload conditions, the switching frequency range, the resonance of the PCB layout and structure, and the influence of thermal deformation.For high-precision and high-reliability projects, the risk of hum must be suppressed from the source by optimizing the processes such as magnetic material selection, structural reinforcement, electrical parameter matching, potting and curing, and spot welding.

Common Causes of Inductor Whining and Complete Solutions

1.The insulation of the inductor is poor in terms of withstand voltage.

Reason: The insulation paint film of the inductor enameled wire is damaged or scratched. The coil comes into close contact with the magnetic core. Under high-voltage conditions, local discharge and creepage occur, causing high-frequency current to make a buzzing sound;

Solution: Replace the faulty inductor with a qualified one of the appropriate voltage rating. Simultaneously, check whether the surrounding high-voltage creepage distance and safety clearance meet the standards.

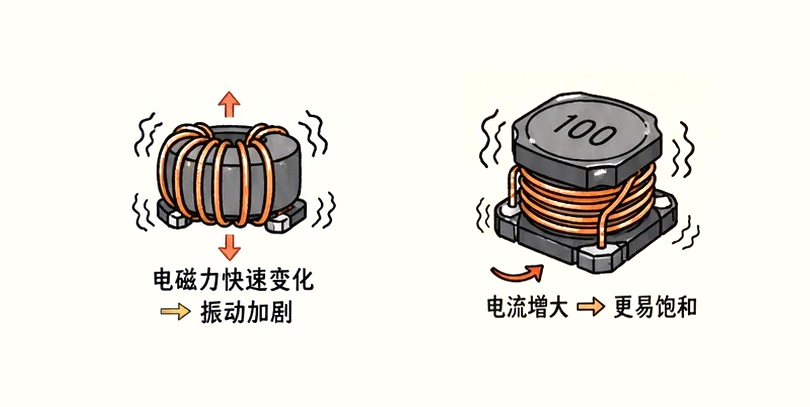

1. Resonant vibration of the magnetostrictive body

Reason: The high-frequency switching signal periodically excites the magnetic core, causing it to repeatedly undergo magnetostriction. The coil becomes loose and the magnetic core is not fixed, resulting in microscopic high-frequency vibrations. When these vibrations are superimposed with the PCB resonance, a distinct whistling sound is produced.

Solution: The coil is subjected to overall vacuum impregnation and curing, the bottom is filled with glue, and the magnetic core bonding points are fixed with adhesive to eliminate gap vibrations.

2. Insufficient residual current for inductor saturation

Reason: The peak current and impulse current of the circuit exceed the rated saturation current of the inductor. The magnetic core rapidly enters deep saturation, resulting in a sudden drop in magnetic permeability and a sudden change in inductance. The switching waveform becomes distorted and distorted, and intense oscillations cause a whistling sound.

Solution: Recalculate the peak operating conditions, and replace the power inductor with one that has a higher saturation current and a greater temperature rise specification.

4. Incorrect selection of inductor shielding structure

Reason: The CD series open-type shielded inductors have exposed magnetic paths and large magnetic core gaps, making it easier for electromagnetic vibrations to radiate noise outward. The humming sound is particularly noticeable during light load and load-switching conditions.

Solution: Replace the shielding NR inductor, close the magnetic circuit inductor, and use an integrated molding die-cast inductor to significantly reduce magnetic radiation and vibration noise.

5. Insufficiently qualified coil winding process

Reason: The winding is loose and uneven in density, the wires are misaligned and overlapped, and the tension of the coils is inconsistent. After power is applied, the forces between the windings are uneven, and under high frequency, they rub against each other and shake, resulting in a whistling sound.

Solution: Select high-consistency wound coil inductors and prohibit the use of loose-wound, disordered, or low-quality inductors.

Do you think you will encounter any other buzzing situations as an electronic engineer?
