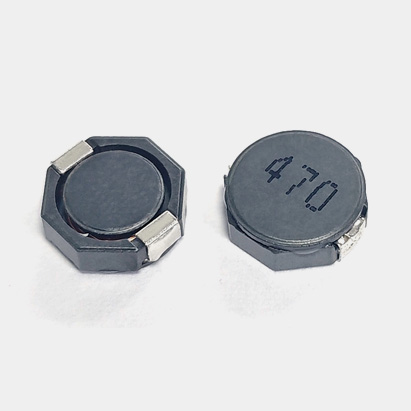

SFD8D28L Shielded Power Inductor
share
SFD8D28L series small shielded power inductor (produced by Fenfa Electronics) key features:
Magnetic shielded, surface mount
3mm height, thin and slim size
Traditional inductor model 8D28
Magnetic shielded, surface mount
3mm height, thin and slim size
Traditional inductor model 8D28
Detail
| SFD8D28L Shielded Power Inductor Specification
On the mobile device, hold the table and swipe left or right to view the detailed parameters.
| 型号 | 电感值 | 直流电阻 | 饱和电流 | 下载 |
| Num | L | DCR | Isat | Download |
| ( μH ) at 100KHz/0.25V | ( mΩ ) | ( A ) | ||
| ±30% | MAX | MAX | ||
| SFD8D28L-7R3N-R-S-LF | 7.3 | 39 | 2.8 |  |
| SFD8D28L-100N-R-S-LF | 10 | 47 | 2.5 | |
| SFD8D28L-150N-R-S-LF | 15 | 69 | 1.9 | |
| SFD8D28L-220N-R-S-LF | 22 | 99 | 1.6 | |
| SFD8D28L-330N-R-S-LF | 33 | 156 | 1.3 | |
| SFD8D28L-470N-R-S-LF | 47 | 195 | 1.15 | |
| SFD8D28L-680N-R-S-LF | 68 | 286 | 0.92 | |
| SFD8D28L-101N-R-S-LF | 100 | 430 | 0.75 | |
Package：1000pcs/reel

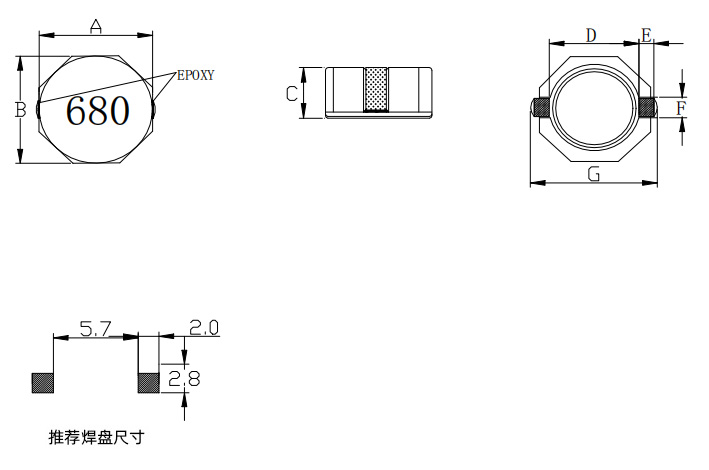

| SFD8D28L Shielded Power Inductor Size
| A：8.0±0.3 mm | B：8.0±0.3 mm |
| C：3.0MAX mm | D：6.3typ mm |
| E：1.2MAX mm | F：2.5ref mm |
| G：9.5MAX mm |
| SFD8D28L Shielded Power Inductor Application
SFD8D28L shielded power inductor is widely used in multimedia products such as smart phones,PDA,MP3,PMP,DSC,DVC,NB,portable DV , DC-DC power converters, etc.
