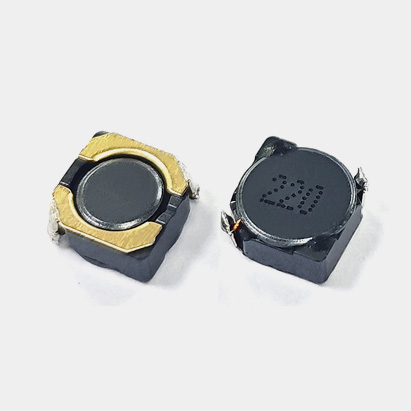

SFD6D28T Shielded Power Inductor
share
SFD6D28T series small shielded power inductor (produced by Fenfa Electronics) key features:
Magnetic shielded, surface mountable
3mm height, thin and lightweight size
Traditional inductor model 6D28
Magnetic shielded, surface mountable
3mm height, thin and lightweight size
Traditional inductor model 6D28
Detail
| SFD6D28T Shielded Power Inductor Specification
On the mobile device, hold the table and swipe left or right to view the detailed parameters.
| 型号 | 电感值 | 直流电阻 | 饱和电流 | 下载 |
| Num | L | DCR | Isat | Download |
| ( μH ) at 10KHz/1V | ( mΩ ) | ( A ) | ||
| ±30% | MAX | MAX | ||
| SFD6D28T-3R0N-R-S-LF | 3 | 24 | 3 |  |
| SFD6D28T-3R9N-R-S-LF | 3.9 | 27 | 2.6 | |
| SFD6D28T-5R0N-R-S-LF | 5 | 31 | 2.4 | |
| SFD6D28T-6R0N-R-S-LF | 6 | 35 | 2.25 | |
| SFD6D28T-7R3N-R-S-LF | 7.3 | 54 | 2.1 | |
| SFD6D28T-8R6N-R-S-LF | 8.6 | 58 | 1.85 | |
| SFD6D28T-100N-R-S-LF | 10 | 65 | 1.7 | |
| SFD6D28T-120N-R-S-LF | 12 | 70 | 1.55 | |
| SFD6D28T-150N-R-S-LF | 15 | 84 | 1.4 | |
| SFD6D28T-180N-R-S-LF | 18 | 95 | 1.32 | |
| SFD6D28T-220N-R-S-LF | 22 | 128 | 1.2 | |
| SFD6D28T-270N-R-S-LF | 27 | 142 | 1.05 | |
| SFD6D28T-330N-R-S-LF | 33 | 165 | 0.97 | |
| SFD6D28T-390N-R-S-LF | 39 | 210 | 0.86 | |
| SFD6D28T-470N-R-S-LF | 47 | 238 | 0.8 | |
| SFD6D28T-560N-R-S-LF | 56 | 277 | 0.73 | |
| SFD6D28T-680N-R-S-LF | 68 | 304 | 0.65 | |
| SFD6D28T-820N-R-S-LF | 82 | 390 | 0.6 | |
| SFD6D28T-101N-R-S-LF | 100 | 535 | 0.54 | |
Package：1500pcs/reel

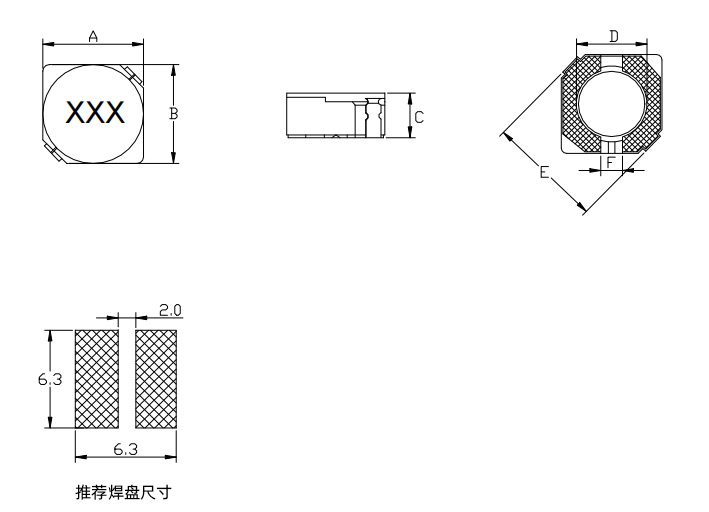

| SFD6D28T Shielded Power Inductor Size
| A：6.7±0.3 mm | B：6.7±0.3 mm |
| C：3.0MAX mm | D：5.2ref mm |
| E：9.5MAX mm | F：2.0ref mm |
| SFD6D28T Shielded Power Inductor Application
SFD6D28T shielded power inductor is widely used in multimedia products such as smart phones, PDA、MP3、PMP、DSC、DVC、NB,portable DV players, DC-DC power converters, etc.
