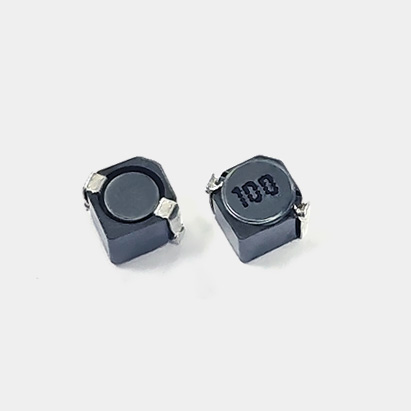

SFD3D28LD Shielded Power Inductor
share
SFD3D28LD series small shielded power inductor (produced by Fenfa Electronics) key features:
Magnetic shield, diagonal staggered surface mount pins
3.1mm height, slim and lightweight size
Traditional inductor model 3D28
Magnetic shield, diagonal staggered surface mount pins
3.1mm height, slim and lightweight size
Traditional inductor model 3D28
Detail
| SFD3D28LD Shielded Power Inductor Specification
On the mobile device, hold the table and swipe left or right to view the detailed parameters.
| 型号 | 电感值 | 直流电阻 | 饱和电流 | 下载 |
| Num | L | DCR | Isat | Download |
| ( μH ) at 100KHz/0.25V | ( mΩ ) | ( A ) | ||
| ±30% | MAX | TYP | ||
| SFD3D28LD-100N-R-S-LF | 10 | 188 | 1 |  |
| SFD3D28LD-220N-R-S-LF | 22 | 335 | 1 | |
Package：2000pcs/reel

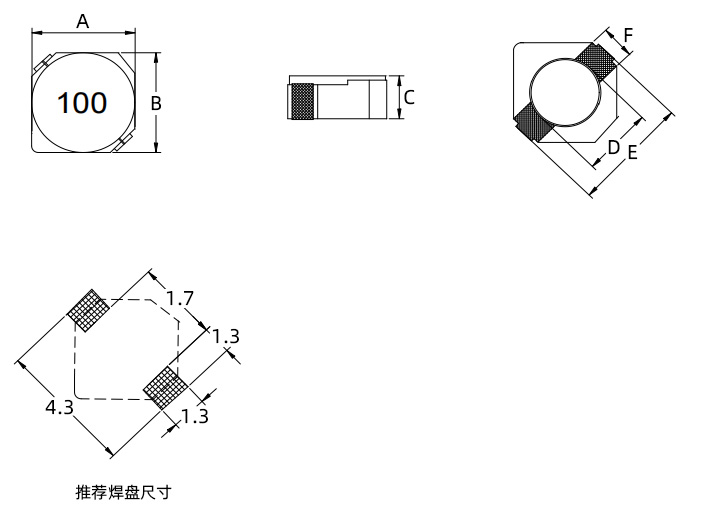

| SFD3D28LD Shielded Power Inductor Size
| A：3.8±0.3 mm | B：3.8±0.3 mm |
| C：3.1MAX mm | D：2.6ref mm |
| E：5.37MAX mm | F：1.0ref mm |
| SFD3D28LD Shielded Power Inductor Application
SFD3D28LD shielded power inductor is widely used in multimedia products such as smart phones,PDA、MP3、PMP、DSC、DVC、NB,portable DV players, DC-DC power converters, etc.
