PQ2920 series surface mount high current inductors (produced by Fenfa Electronics) key features:
High Current Inductor can up to arround 100a
Flat wire Inductor
Low DCR , Low loss
High Current Inductor can up to arround 100a
Flat wire Inductor
Low DCR , Low loss
Detail
| PQ2920 High Current Inductor Specification
On the mobile device, hold the table and swipe left or right to view the detailed parameters.
| 型号 | 电感值 | 直流电阻 | 饱和电流 | 温升电流 | 测试频率 | 下载 |
| Num | L | DCR | Isat | Irms | TEST FREQ. | Download |
| ( μH ) | ( mΩ ) | ( A ) | ( A ) | |||
| MAX | MAX | MAX | ||||
| PQ2920-3R3M-R-S | 3.3±20% | 3.0 | 90 | 37 | 100KHz/1V |
|
| PQ2920-100M-R-S | 10±20% | 3.5 | 35 | 37 | 100KHz/1V |  |
| PQ2920-220M-R-S | 22±20% | 3.5 | 16 | 37 | 100KHz/1V | |
| PQ2920-470M-R-S | 47±20% | 4.5 | 10 | 18 | 100KHz/1V | |
Package: 35pcs/tray

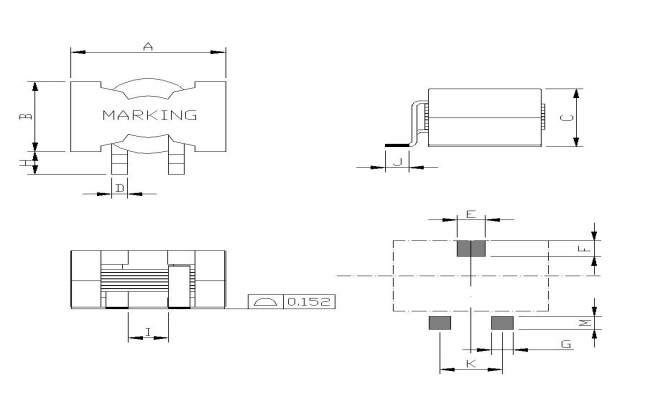

| PQ2920 High Current Inductor Size
PQ2918 High Current Inductor L*W*H：28.5x20.5x21.5mm，Flatness<0.15mm
| A：28.5MAX mm | B：20.5MAX mm |
| C：21.5MAX mm | D：4.0±0.3 mm |
| E：6.0ref mm | F：6.0ref mm |
| G：6.0ref mm | H：6.5±1 mm |
| I：6.6±0.5 mm | K：10.43ref mm |
| M：6.0ref mm | J：3.8±0.5 mm |
| PQ2920B High Current Inductor Application
PQ2920High Current Inductor is Widely used in energy storage devices, automotive power supplies, AI server power supplies, electric vehicles, tractors, and communication equipment.
