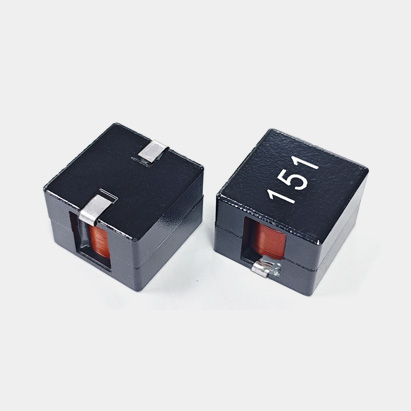

SFN2217 High Current Inductor
share
SFN2217 Series High-Current Inductors (Produced by Fenfa Electronics) Technical Highlights:
Flat wire winding enables higher current handling
Compact design
Magnetic core coated with paint for excellent voltage resistance
Flat wire winding enables higher current handling
Compact design
Magnetic core coated with paint for excellent voltage resistance
Detail
| SFN2217 High Current Inductor Specification
On the mobile device, hold the table and swipe left or right to view the detailed parameters.
| 型号 | 电感值 | 直流电阻 | 饱和电流 | 温升电流 | 下载 | |
| Num | L | DCR | Isat | Irms | Download | |
| ( μH ) at 100KHz/0.1V | ( mΩ ) | ( A ) | ( A ) | |||
| ±20% | TYP | MAX | TYP | TYP | ||
| SFN2217-151M-R-S | 150 | 34 | 10 | 8 |  | |
Package：500pcs/reel
| SFN2217 High Current Inductor Size
| A：23.5MAX mm | B：22±1 mm |
| C：17±0.4 mm | D：5.5±1.0 mm |
| E：3.5±1.0 mm | G：6.0typ mm |
| H：7typ mm | F：16typ mm |
| SFN2217 High Current Inductor Application
SFN2217 high current inductor is widely used in Energy storage devices, automotive power supplies, AI server power supplies, electric vehicles, tractors, and communication equipment
