PQ2013B High Current Inductor
share

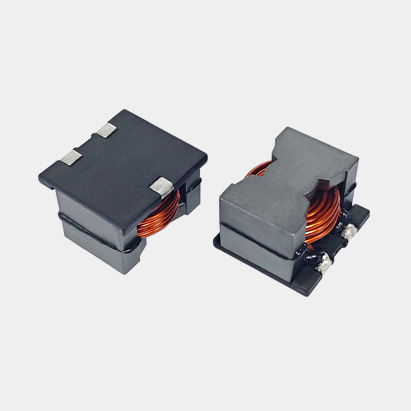

Technical highlights of the PQ2013B series high-current inductors (produced by Fenfa Electronics):
Designed for DC-DC Converters and PFC circuits
Flat coils or round coils
High inductance value, high current, low resistance DCR, low loss
Designed for DC-DC Converters and PFC circuits
Flat coils or round coils
High inductance value, high current, low resistance DCR, low loss
Detail
| PQ2013B High Current Inductor Specification
On the mobile device, hold the table and swipe left or right to view the detailed parameters.
| 型号 | 电感值 | 直流电阻 | 饱和电流 | 温升电流 | 下载 |
| Num | L | DCR | Isat | Irms | Download |
| ( μH ) at 100K/0.1V | ( mΩ ) | ( A ) | ( A ) | ||
| ±10% | MAX | MAX | MAX | ||
| PQ2013B-330M-R-S | 33 | 25 | 12 | 9 |
Package：100pcs/reel

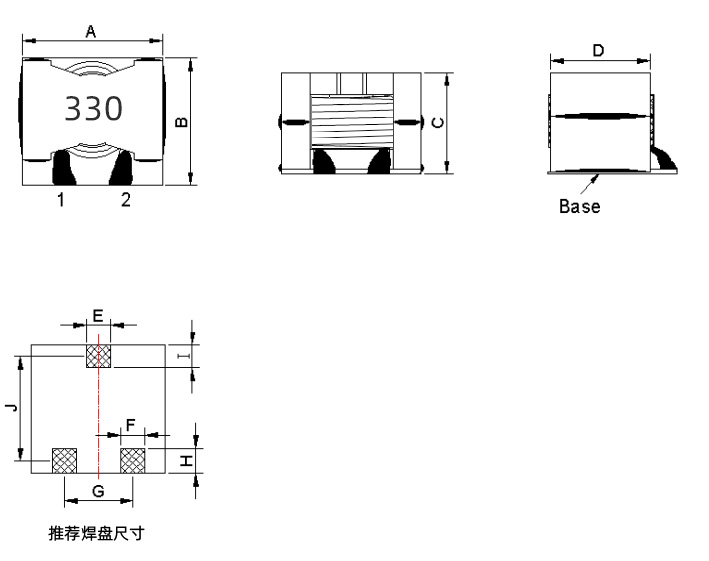

| PQ2013B High Current Inductor Size
PQ2013B High Current Inductor L*W*H：22*20*13mm，Flatness<0.15mm
| A：22MAX mm | B：20MAX mm |
| C：13MAX mm | D：15MAX mm |
| E：3.0±0.5 mm | F：3.0±0.5 mm |
| G：8.5±0.5 mm | H：3.0±0.5 mm |
| I：3.0±0.5 mm | J：15.7±0.5 mm |
| PQ2013B High Current Inductor Winding
| PQ2013B High Current Inductor Application
PQ2013B High Current Inductor is widely used in
energy storage devices, automotive power supplies, AI server power supplies, electric vehicles, tractors, and communication equipment.
