EP1715 Inductor for Digital Amplifier
share
Technical highlights of the EP1715 series Inductor for Digital Amplifier (produced by Fenfa Electronic):
Designed for D-class power amplifier devices/digital amplifiers
Closed magnetic circuit structure to prevent radiation interference
Pin-type plug-in, with low resistance and high current
Designed for D-class power amplifier devices/digital amplifiers
Closed magnetic circuit structure to prevent radiation interference
Pin-type plug-in, with low resistance and high current
Detail
| EP1715 Inductor for Digital Amplifier Specification
On the mobile device, hold the table and swipe left or right to view the detailed parameters.
| 型号 | 电感值 | 直流电阻 | 饱和电流 | 温升电流 | 测试频率 | 下载 |
| Num | L | DCR | Isat | Irms | TEST FREQ | Download |
| ( μH ) | ( mΩ ) | ( A ) | ( A ) | |||
| ±20% | MAX | TYP | MAX | |||
| EP1715-100M-B-T1 | 10 | 18 | 26 | 6 | 1KHz/0.1V |  |
| EP1715Y-220M-B-S | 22 | 20 | 14 | 6.6 | 100KHz/1V | |
Package：195pcs/tray

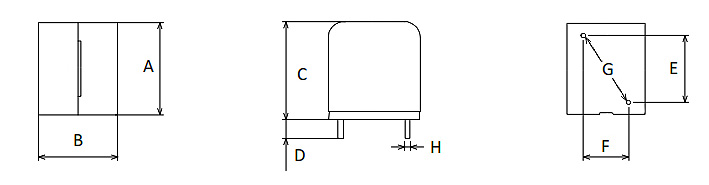

| EP1715 Inductor for Digital Amplifier Size
| A：17.5±0.5 mm | B：15±0.5 mm |
| C：20.2MAX mm | D：5.0±1 mm |
| E：12.5±0.5 mm | F：8.5±0.5 mm |
| G：15±0.5 mm | H：0.8±0.1 mm |
| EP1715 Inductor for Digital Amplifier Application
EP1416 Inductor for Digital Amplifier is widely used in home digital amplifiers, audio equipment, and automotive digital amplifiers.
