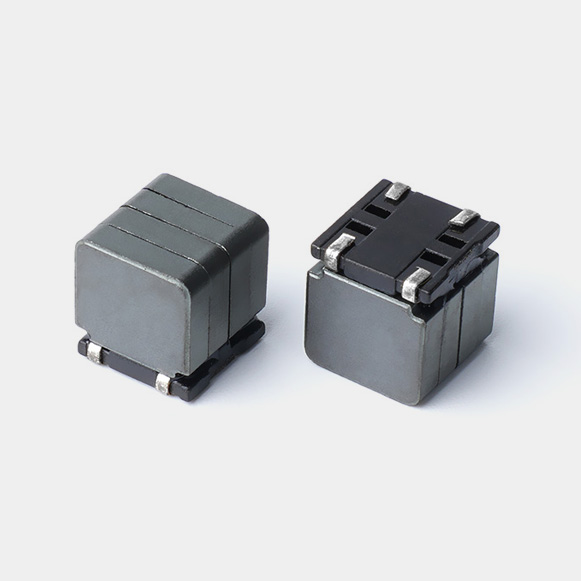

EP1418 Inductor for Digital Amplifier
share
EP1418 Series Inductor for Digital Amplifier (Fenfa Electronics) Technical Highlights:
Designed for Class D amplifier devices with power below 100W
A surface-mount, non-coupled dual inductor assembly
Magnetic shielded housing, SMD mounting
Operates independently without coupling effects
Combines two inductors in a single package, saving space
Designed for Class D amplifier devices with power below 100W
A surface-mount, non-coupled dual inductor assembly
Magnetic shielded housing, SMD mounting
Operates independently without coupling effects
Combines two inductors in a single package, saving space
Detail
| EP1418 Inductor for Digital Amplifier
On the mobile device, hold the table and swipe left or right to view the detailed parameters.
| 型号 | 电感值 | 直流电阻 | 额定电流 | 下载 |
| Num | L | DCR | IDC | Download |
| ( μH ) at100KHz/0.25V | ( mΩ ) | ( A ) drop25% | ||
| ±20% | MAX | TYP | ||
| EP1418-100M-R-S | 10 | 6.6 | 9.4 |  |
| EP1418-150M-R-S | 15 | 12 | 8.5 | |

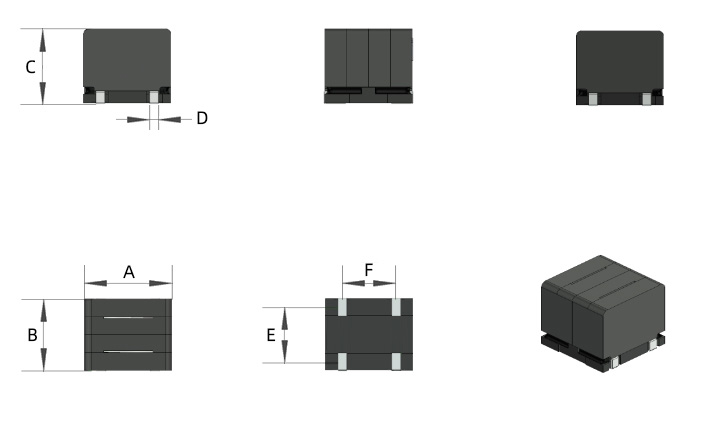

| EP1418 Inductor for Digital Amplifier Size
| A：14.2±0.5 mm | B：16.2±0.5 mm |
| C：17.2MAX mm | D：1.8±0.15 mm |
| E：12.5±0.5 mm | F：9.0±0.5 mm |
| EP1418 Inductor for Digital Amplifier Winding
| EP1418 Inductor for Digital Amplifier Application
EP1418 Inductor for Digital Amplifier is Widely used in home digital amplifiers, audio equipment, and automotive digital amplifier systems.
