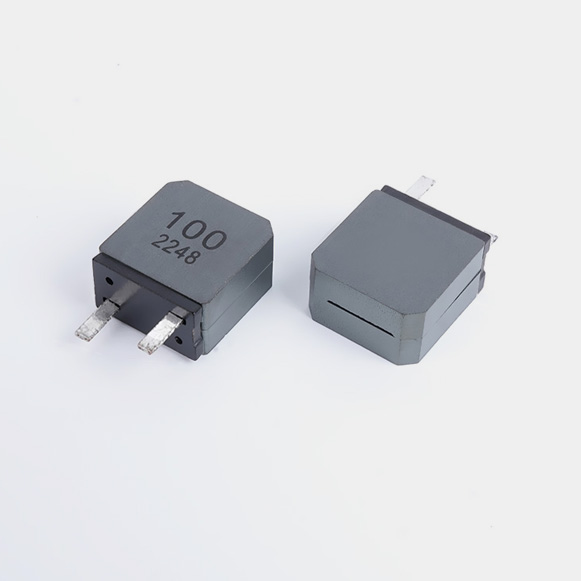

EP1408 Inductor for Digital Amplifier
share
EP1408 Series Digital Amplifier Inductor (Fenfa Electronics) Technical Highlights:
Designed for Class D amplifier devices with power below 100W
Uses flat copper wire and a closed magnetic circuit structure to prevent radiation interference
Compact plug-in design, low resistance, high current capacity
Designed for Class D amplifier devices with power below 100W
Uses flat copper wire and a closed magnetic circuit structure to prevent radiation interference
Compact plug-in design, low resistance, high current capacity
Detail
| EP1408 Inductor for Digital Amplifier Specification
On the mobile device, hold the table and swipe left or right to view the detailed parameters.
| 型号 | 电感值 | 直流电阻 | 额定电流 | 下载 |
| Num | L | DCR | IDC | Download |
| ( μH ) at100KHz/0.25V | ( mΩ ) | ( A ) | ||
| ±20% | MAX | TYP | ||
| EP1408-150M-B-S | 15 | 12 | 9.5 |
Package：225pcs/tray
| EP1408 Inductor for Digital Amplifier Size
| A：14±0.5mm | B：8.0±0.5mm |
| C：16.5MAX mm | D：5.0±0.5 mm |
| E：8.9±0.5 mm | F：3.3±0.5 mm |
| G：1.8±0.3 mm | H：0.35±0.3 mm |
| EP1408 Inductor for Digital Amplifier Application
EP1408 Inductor for Digital Amplifier is widely used in home digital amplifiers, audio equipment, and automotive digital amplifiers.
