SQ1212 Common Mode Inductor-Vertical
share

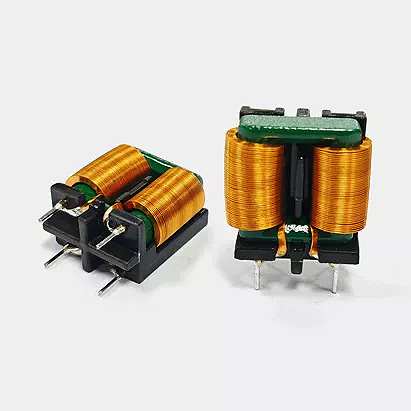

SQ inductors feature a vertical or horizontal square closed magnetic core design, with flat wire automatically wound to prevent the risk of short circuits between copper wire and the core. They offer high insulation strength, high current-carrying capacity, and can deliver greater current within the same volume.
Detail
| SQ1212 Common Mode Inductor Specification
On the mobile device, hold the table and swipe left or right to view the detailed parameters.
| 型号 | 电感值 | 漏感 | 耐压 | 直流电阻 | 线径 | 下载 |
| Num | L | Leak L | HI-POT | DCR | WIRE SIZE | Download |
| ( mH ) at 1KHz/0.25V | ( mH ) at 1KHz/0.25V | ( V ) | ( mΩ ) | ( mm ) | ||
| MIN | MAX | AC50Hz, 3mA, 3sec | MAX | |||
| SQ1212-10mH | 10 | 0.3 | 1500 | 150 | 0.15*1 |  |
| SQ1212-13mH | 13 | 0.3 | 1500 | 120 | 0.15*1 | |
| SQ1212-20mH | 20 | 0.3 | 1500 | 150 | 0.13*1 | |
| SQ1212-20mH | 20 | 0.3 | 1500 | 250 | 0.1*1 | |
| SQ1212-25mH | 25 | 0.3 | 1500 | 250 | 0.1*1 | |
Package：72pcs/tray
| SQ1212 Common Mode Inductor Size

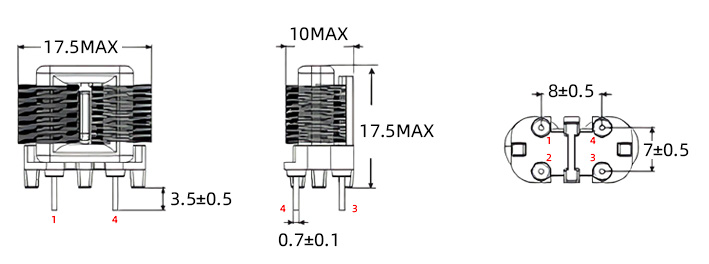

SQ1212 Common Mode Inductor-Vertical L*W*H：17.5*10*17.5mm
| SQ1212 Common Mode Inductor Winding
| SQ1212 Common Mode Inductor Application
SQ1212 Common Mode Inductor is Widely used in LED lighting power supplies, communication power supplies, small household appliances, medical devices, and adapters
