SQ1212 Common Mode Inductor-Horizontal
share
The SQ1212 common-mode inductor, designed as a key electronic component to address the complex electromagnetic environments in power supplies and LED lighting, features flat wire winding. Compared to traditional round wire, it offers higher current density and more uniform electric field distribution.
Detail
| SQ1212 Common Mode Inductor（Horizontal）Specification
On the mobile device, hold the table and swipe left or right to view the detailed parameters.
| 型号 | 电感值 | 漏感 | 耐压 | 直流电阻 | 线径 | 下载 |
| Num | L | Leak L | HI-POT | DCR | WIRE SIZE | Download |
| ( mH ) at 1KHz/0.25V | ( mH ) at 1KHz/0.25V | ( V ) | ( mΩ ) | ( mm ) | ||
| MIN | MAX | AC50Hz, 3mA, 3sec | MAX | |||
| SQ1212-20mH | 20 | 0.3 | 1500 | 250 | 0.1*1 |  |
Package：154pcs/tray

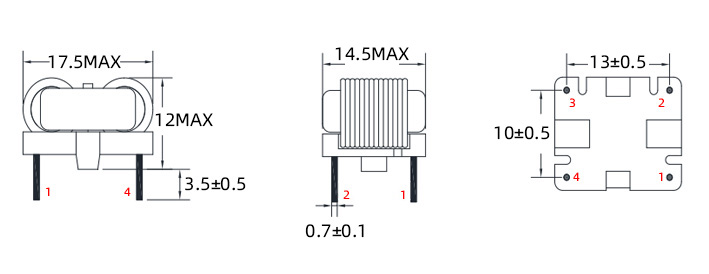

| SQ1212 Common Mode Inductor（Horizontal）Size
SQ1212 Common Mode Inductor L*W*H：17.5*14.5*12mm
| SQ1212 Common Mode Inductor（Horizontal）Winding
| SQ1212 Common Mode Inductor（Horizontal）Application
SQ1212 Common Mode Inductor is Widely used in LED lighting power supplies, communication power supplies, small household appliances, medical devices, and adapters
