SFER1050 High Current Inductor
share
Technical highlights of the SFER1050 series high-current inductors (produced by Fenfa Electronics):
Utilizing flat coils to meet lower DC resistance and high power requirements
Available in various sizes and inductance values
Suitable for applications such as POL, VRM, and VRD
Utilizing flat coils to meet lower DC resistance and high power requirements
Available in various sizes and inductance values
Suitable for applications such as POL, VRM, and VRD
Detail
| SFER1050 High Current Inductor Specification
On the mobile device, hold the table and swipe left or right to view the detailed parameters.
| 型号 | 电感值 | 直流电阻 | 饱和电流 | 温升电流 | 下载 | |
| Num | L | DCR | Isat | Irms | Download | |
| ( mH ) at 100KHz/0.1V | ( mΩ ) | ( A ) | ( A ) | |||
| ±20% | TYP | MAX | TYP | MAX | ||
| SFER1050-R80N-R-S | 0.8 | 4.3 | 5 | 25.6 | 16.3 | |
| SFER1050-1R0M-R-S | 1 | 4.3 | 5 | 17.5 | 16.3 | |
| SFER1050-1R2M-R-S | 1.2 | 5.9 | 7 | 21.3 | 15 | |
| SFER1050-1R3M-R-S | 1.3 | 4.3 | 5 | 17.2 | 16.3 | |
| SFER1050-1R5M-R-S | 1.5 | 4.3 | 5 | 14.5 | 16.3 | |
| SFER1050-1R8M-R-S | 1.8 | 5.9 | 7 | 14.3 | 15 | |
| SFER1050-2R0M-R-S | 2 | 8.3 | 10 | 16.2 | 11.5 | |
| SFER1050-2R2M-R-S | 2.2 | 4.3 | 5 | 10 | 16.3 | |
| SFER1050-2R5M-R-S | 2.5 | 6.4 | 8.5 | 12.1 | 12 | |
| SFER1050-3R2M-R-S | 3.2 | 5.9 | 7 | 8.5 | 15 | |
| SFER1050-4R0M-R-S | 4 | 8.3 | 10 | 8.8 | 11.5 | |
| SFER1050-4R3M-R-S | 4.3 | 6.4 | 8.5 | 7 | 12 |  |
| SFER1050-5R7M-R-S | 5.7 | 8.3 | 10 | 6 | 11.5 | |
Package：700pcs/reel

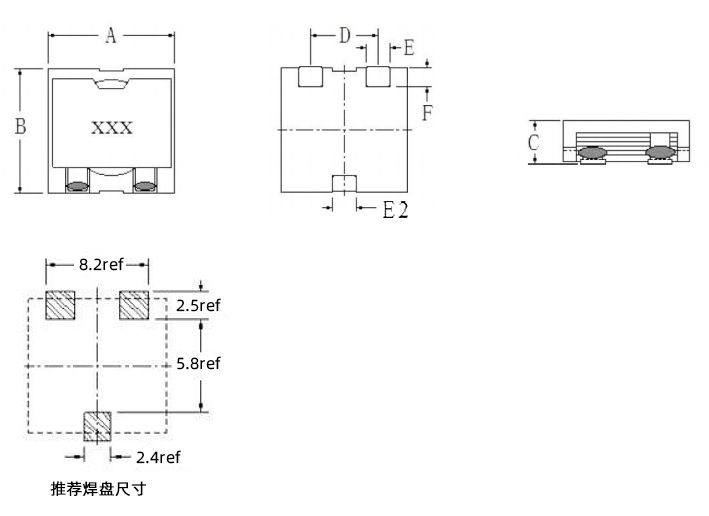

| SFER1050 High Current Inductor Size
| A：10.4MAX mm | B：10.6MAX mm |
| C：5.5MAX mm | D：5.5±0.5mm |
| E：2.5ref mm | E2：1.5ref mm |
| F：2.0ref mm |
| SFER1050 High Current Inductor Application
SFER1050 High Current Inductor is widely used in consumer electronics, small household appliances, power converters, electric vehicles, wireless communication, switching power supplies, etc.
