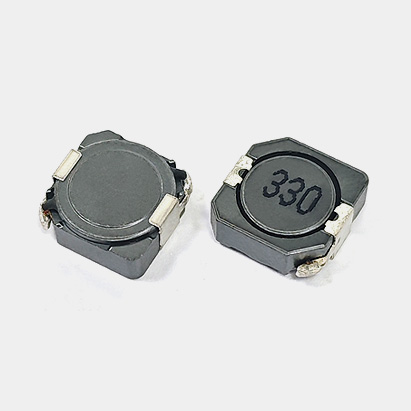

SFQ104 Shielded Power Inductor
share
Technical highlights of the SFQ104 series small shielded power inductors (produced by Fengfa Electronics):
Magnetic shield for reducing electromagnetic interference
Thin and lightweight design, suitable for limited space
Traditional inductor models
Magnetic shield for reducing electromagnetic interference
Thin and lightweight design, suitable for limited space
Traditional inductor models
Detail
| SFQ104 Shielded Power Inductor Specification
On the mobile device, hold the table and swipe left or right to view the detailed parameters.
| 型号 | 电感值 | 直流电阻 | 额定电流 | 下载 |
| Num | L | DCR | IDC | Download |
| ( μH ) at 100KHz/0.25V | ( mΩ ) | ( A ) | ||
| ±30% | MAX | MAX | ||
| SFQ104-1R5N-R-S-LF | 1.5 | 8 | 10 |  |
| SFQ104-2R5N-R-S-LF | 2.5 | 10 | 7.5 | |
| SFQ104-3R8N-R-S-LF | 3.8 | 13 | 6 | |
| SFQ104-5R2N-R-S-LF | 5.2 | 22 | 5.5 | |
| SFQ104-7R0N-R-S-LF | 7 | 27 | 4.8 | |
| SFQ104-100N-R-S-LF | 10 | 35 | 4.4 | |
| SFQ104-150N-R-S-LF | 15 | 50 | 3.6 | |
| SFQ104-220N-R-S-LF | 22 | 73 | 2.9 | |
| SFQ104-330N-R-S-LF | 33 | 93 | 2.3 | |
| SFQ104-470N-R-S-LF | 47 | 128 | 2.1 | |
| SFQ104-680N-R-S-LF | 68 | 213 | 1.5 | |
| SFQ104-101N-R-S-LF | 100 | 304 | 1.35 | |
| SFQ104-151N-R-S-LF | 150 | 506 | 1.15 | |
| SFQ104-221N-R-S-LF | 220 | 756 | 0.92 | |
| SFQ104-331N-R-S-LF | 330 | 1090 | 0.7 | |
Package：1000pcs/reel

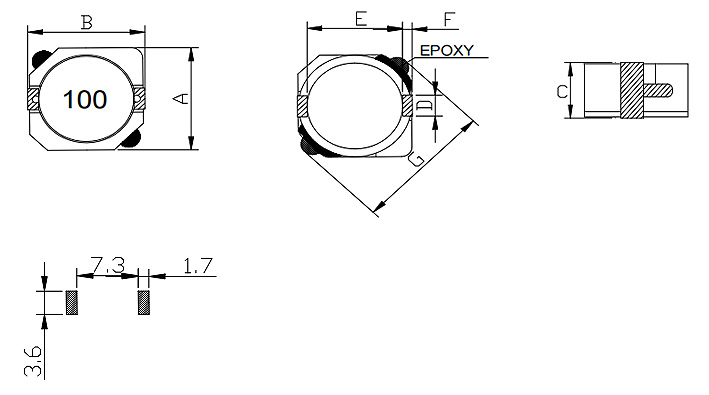

| SFQ104 Shielded Power Inductor Size
| A：10.3MAX mm | B：10.4MAX mm |
| C：4MAX mm | D：3ref mm |
| E：7.7ref mm | F：1.2ref mm |
| G：13.5MAX mm |
| SFQ104 Shielded Power Inductor Application
SFQ104 shielded power inductor is widely used in automotive electronics, industrial and consumer electronics, high-frequency switching power supplies, radar modules, DC-DC converters, OBC on-board chargers, navigation systems, computer 3C products, household appliances, etc.
