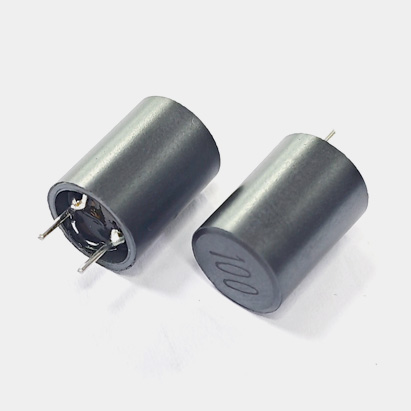

PKF1014 Series Shielded Drum Core Inductor (Produced by Fenfa Electronics) Technical Highlights:
Magnetic shielding for interference-free performance
Through-hole mounting with a wide range of inductance values
Size Code 1014
L*W*H 10.5x10.5x14.5mm
Bonding Pad 2
sales@coilsfenfa.com;marketing@coilsfenfa.com
Send us messages
Detail

|   PKF1014 Shield Drum Core Inductor Specification

On the mobile device, hold the table and swipe left or right to view the detailed parameters.


型号电感值直流电阻额定电流Q值自谐振频率下载
NumLDCRIDCQSRFDownload

( μH ) at 1KHz/0.25V(mΩ )( A )at 50KHz/0.25V


TYPMAXMAXMINMIN
PKF1014-100M-B-S-LF10±20%305



Package：100pcs/tray




|   PKF1014 Shield Drum Core Inductor Size


A：10.5±0.5 mmB：14.5MAX mm
C：4±1 mmD：0.7±0.1 mm
E：5±0.5 mm







|   PKF1014 Shield Drum Core Inductor Apllication

PKF1014 Shield Drum Core Inductor is widely used in home digital amplifiers, audio equipment, and automotive digital amplifier devices.
