HCM100805 Common Mode Inductor
share

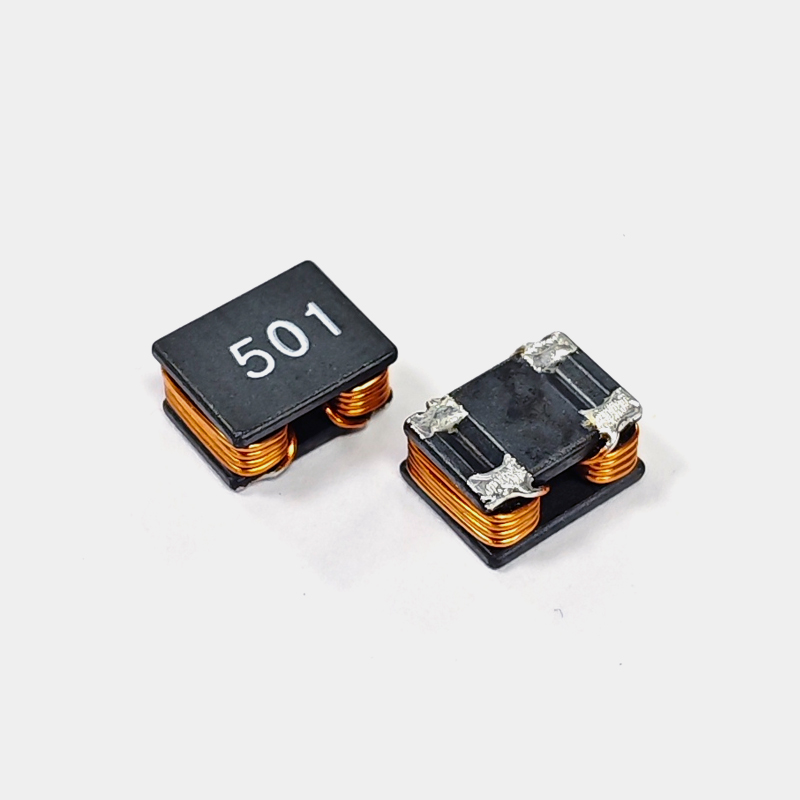

HCM100805 series common-mode inductor (produced by Fenfa Electronics) technical highlights:
Designed to suppress common-mode noise and filter
Has excellent impedance characteristics, effectively suppressing high-frequency noise
Soldering installation
Designed to suppress common-mode noise and filter
Has excellent impedance characteristics, effectively suppressing high-frequency noise
Soldering installation
Detail
| HCM100805 Common Mode Inductor Specification
On the mobile device, hold the table and swipe left or right to view the detailed parameters.
| 型号 | 电感值 | 阻抗 | 直流电阻 | 额定电流 | 绝缘电阻 | 工作电压 | 下载 | |
| Num | L | Z | DCR | IDC | IR | Rated Voltage | Download | |
| ( μH ) at 100KHz/0.1V | （Ω）at 100MHz/0.5V | ( mΩ ) | ( A ) | ( mΩ ) | ( V ) | |||
| MIN | TYP | TYP | MAX | MAX | MIN | MAX | ||
| HCM100805-100-T | 3.5 | 10 | 1000 | 45 | 5 | 10 | 80 |  SFNR3015-SERIES.PDF |
Package：1000pcs/r
| HCM100805 Common Mode Inductor Size
| A：10.5±0.5 mm | B：8±0.5 mm |
| C：5.3MAX mm | D：2.55typ mm |
| E：2typ mm | F：4.5typ mm |
| G：3.6typ mm |
| HCM100805 Common Mode Inductor Application
HCM100805 Common Mode Inductor is It is widely used in consumer electronics, small household appliances, power converters, electric vehicles, wireless communication, switching power supplies, etc.
